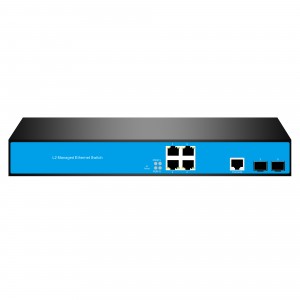

6 port 10/100M/1000M L3 Managed PoE Ethernet Switch
6 port 10/100M/1000M L3 Managed PoE Ethernet Switch
Gigabit access, gigabit SFP port uplink
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support Gigabit Ethernet port and Gigabit SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support physical single-mode single fiber optical path(Bypass) function, pure hardware switching, short switching time, does not affect the data transmission rate and improves the stability of the network system.
Intelligent PoE power sup
◇ meeting the needs of security monitoring, teleconferencing
◇ system, wireless coverage, and other scenarios.
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
◇ PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.
◇ 802. 1X authentication.
◇ Port isolation, storm control.
◇ IP-MAC-VLAN-Port binding.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Low power consumption, No fan.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link ,PoE
One-stop remote control and management
◇ HTTPS, SSLV3, and SSHV1/V2.
◇ RMON, system log, LLDP, and port traffic statistics.
◇ CPU monitoring, memory monitoring, Ping test, and cable diagnose.
◇ Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
| 4* 10/ 100/ 1000Base-T RJ45 PoE ports
2* 100/ 1000Base-X uplink SFP slot ports
1* console por
|Ethernet Port|| Port1-4 can support 10/100/1000Base-T(X) auto-sensing,Full/half
duplex MDI/MDI-X self-adaption
| 10BASE-T: Cat3,4,5 UTP(≤100 meters)
100BASE-TX: Cat5 or later UTP(≤100 meters)
1000BASE-T: Cat5e or later UTP(≤100 meters)
SFP Slot Port
| Gigabit SFP optical fiber interface, default no include optical modules (Only
supports single-mode single fiber optical module. LC)
|Wavelength/Distance||multimode: 850nm 0~550M,1310nm 0~2KMsingle mode: 1310nm 0~40KM ，1550nm 0~120KM|
|Ring network||Supports ERPS ring network function, with a maximum number of rings of 5 and a convergence time of<20ms|
|Network Protocol|| IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-X, IEEE802.3z 1000Base-X, IEEE802.3x
|Forwarding Mode||Store and Forward(Full Wire Speed)|
|LED Indicator||PowerIndicatorLight||PWR：1 Green|
|System indicator||RUN：1 Green|
|Fiber Indicator Light||5-6：1 Green (Link,SDFED)|
|On the RJ45 seat||1-4 Yellow:Indicate PoE|
|1-4 Green: Indicates network working status|
|Reset||Press and hold the reset switch for 10s and release it to restore thefactory settings
|PoE & Power Sup|
|PoE Por||Port 1 to 4 IEEE802.3af/at|
|Power Supply Pin||Default 1/2 (+), 3/6 (-)|
|Max Power Per Port||15.4W per port, with a maximum power of 30W per port|
|Total PWR||65W/ (AC100-240V)|
|Power Consumption||Standby<6W, Full load<65W|
|Power Supply||52V2.3A 65W|
|Certification & Warranty|
|Power surge protection||IEC 61000-4-5 Level X（6KV）（8/20us）|
|Network interface surge protection||IEC 61000-4-5 Level 4（4KV）（10/700us）|
|MechanicalProperties||IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock)IEC60068-2-32 (free fall)|
|Certification|| CCC, CE mark, commercial, CE/LVD EN62368- 1, FCC Part 15 Class B,
|Operation TEMP /Humidity||-40~+75°C;5%~90% RH Non condensing|
|Storage TEMP /Humidity||-40~+85°C;5%~95% RH Non condensing|
|Dimension (L*W*H)|| 330mm* 172mm*44mm
product application diagra：
