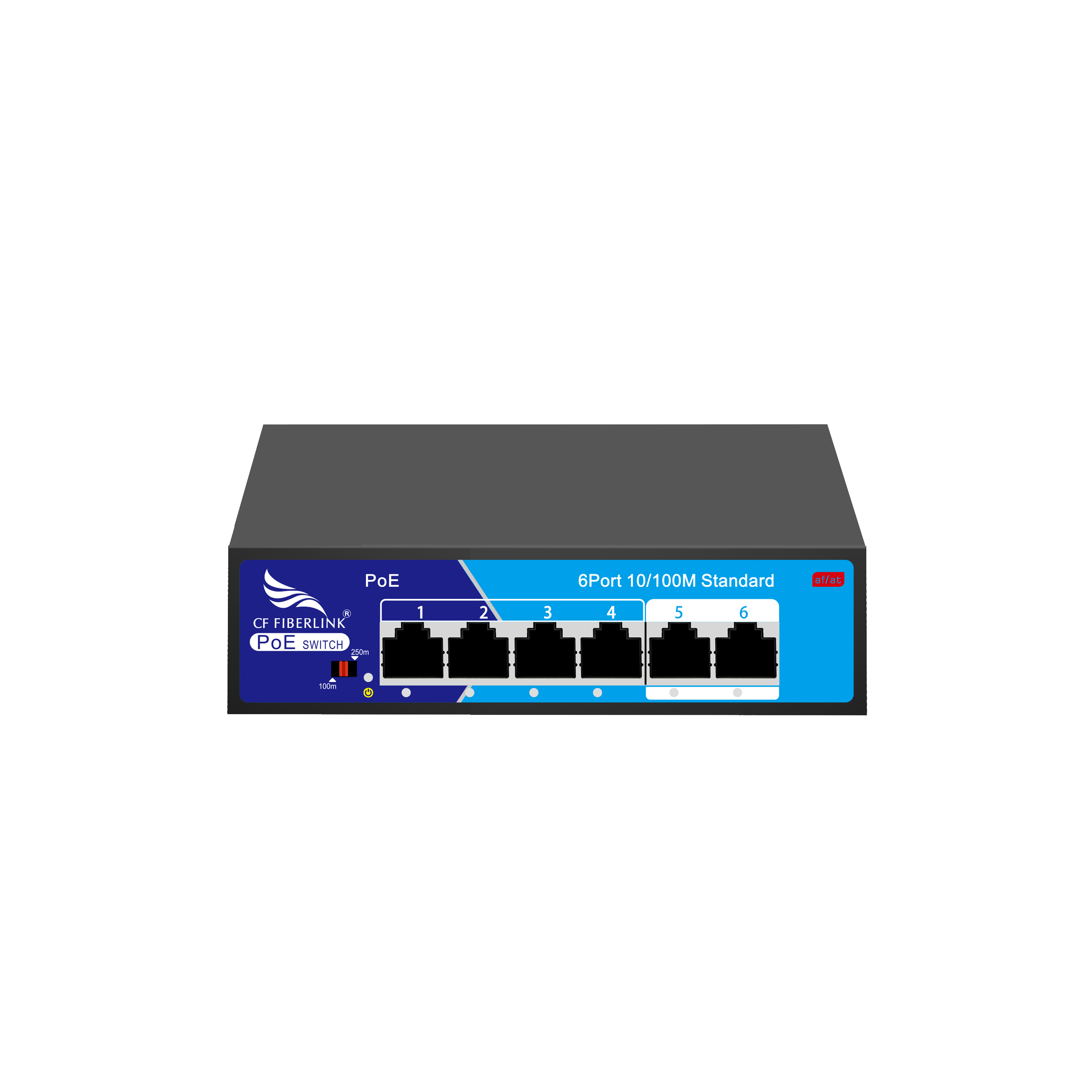

6-port 10/100M PoE Ethernet switch Dedicated for monitoring

Short Description:

6-port 10/100M PoE Ethernet switch Dedicated for monitoring

6 ports PoE Ethernet Switch is a security surveillance Ethernet Switch which aims at Ethernet high definition surveillance and security system. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. ESD and surge protection circuit can improve product stability. The product supports one key CCTV model, with VLAN function can restrain the network storm, protect the information security, prevent the viral transmission and cyber attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.

Product Detail

Product Tags

6-port 10/100M PoE Ethernet switch Dedicated for monitoring

Product Features:

6-port 10/100M PoE Ethernet switch Dedicated for monitoring

Introducing our newest product, a 6-port 10/100M PoE Ethernet Switch for Surveillance. We are a communication equipment company integrating research and production, striving to provide high-quality products to meet the needs of enterprises and individuals. Our new switches offer superior performance and features that set them apart from other switches on the market.

10/100M PoE Ethernet switch is ideal for managing and monitoring network traffic. It is designed to provide reliable and easy-to-use Power over Ethernet (PoE) connections to IP surveillance cameras, wireless access points, and other Ethernet-enabled devices. With its innovative technology, the switch can transmit data and power over a single Ethernet cable, making installation more straightforward and cost-effective.

One of the most distinctive features of our switches is their dedicated monitoring capabilities. With its plug-and-play design, monitoring your network has never been easier. Our switches can be installed and managed quickly and efficiently, making them ideal for small and medium businesses. This saves you time and money as it eliminates the need for complicated installers and wiring.

Our switches provide six Ethernet ports for high-speed data transmission. With speeds of up to 100Mbps, the switch can handle heavy networking tasks. Additionally, the switch can deliver up to 30W per port, providing plenty of power for your PoE devices. This makes it one of the most powerful switches on the market, delivering speed and power in a single device.

The 6-Port 10/100M PoE Ethernet Switch is ideal for network administrators who need an easy-to-use, high-performance switch for their monitoring needs. Our switches are designed to deliver exceptional performance, scalability and reliability. It offers unparalleled monitoring capabilities, making it a must-have tool for any business that needs to monitor its network.

All in all, our new switch is a capable and reliable device that delivers great performance at an affordable price. With its dedicated monitoring features and easy-to-use plug-and-play design, it’s the perfect tool for businesses looking to take control of their network traffic. Contact us today and one of our representatives will be happy to assist you.

technical parameter:

Model CF-PE204NT
Downstream Ports 4*10/100Base-TX (PoE)
Uplink Ports 2*10/100Base-TX
Network Standard IEEE802.3 、IEEE802.3u、IEEE802.3X
Switch Capacity 1.2Gbps
Throughput 0.8928Kpps
Switch Processing Scheme Store and Forward
Memory Buffer 768K
MAC Table 2K
PoE Standard 802.3af/at(PSE)
PsE  Type End-span
Power Pin Assignment 1/2( +),3/6(-)
PoE Power Output 52V DC , 30 watts max
PoE Budge 65 watts max
Lightning protection 6KV    Execute:IEC61000-4-5
ESD 6KV     Contact discharge8KV       Air dischargeExecute:IEC61000-4-2
Power Supply DC 48V~57V
Power Dissipation <5W
Work temperature -10℃~55℃
Storage temperature -40℃~85℃
Humidity(Non-condensin) 5%-95%
Dimension( L ×W × H ) 141mm×117mm×40mm
Regulator CE、FCC、ROHS

Product Size:




Packing List:

6-port 10/100M PoE Ethernet switch 1SET
AC Power Cable 1PC
User Guide 1PC
Warranty Card 1PC

If you find any shortage or damage of accessories, please contact your local dealer in time.
