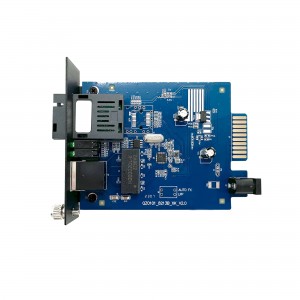

2-port 10/100/1000M WDM Media Converter (Single-mode Single-fiber SC)

Short Description:

CF-101GSK-3B series is a 10/ 100/ 1000M fiber media converter independently developed by CF FIBERLINK. It has 1* 10/ 100/ 1000Base-T port and 1* 1000Base-X uplink SC fiber port, User can select different optical modules, such as multimode dual fiber, single-mode dual fiber, and single-mode single fiber. The media converter adopts the enterprise-class Taiwan Realtek company’s carrier-grade chip solution, which has stable performance, good quality and high cost performance.It is suitable for optical fiber access application scenarios such as security monitoring, wireless coverage, intelligent transportation, and safe cities to form a cost-effective and stable communication network. Unmanaged model, plug and play, no configuration, easy to use.


Product Detail

Product Tags

2-port 10/100/1000M WDM Media Converter (Single-mode Single-fiber SC)

Product Features:

Introducing the Portable Fiber Converter: Transforming Connectivity with Unmatched Efficiency!

Enhance your web experience with advanced technology from Huizhou Changfei Optoelectronics Technology Co., Ltd. Known for our expertise in manufacturing Industrial Smart Managed Switches, PoE Switches, Ethernet Switches, Wireless Bridges and Wireless 4G Routers, our company is proud to present our latest innovation – the Portable Fiber Optic Converter.

Designed with precision and superior engineering, our portable fiber converters are game changers in connectivity. With its cutting-edge features, this converter can handle card-style 1 optical 1 electrical single-mode single-fiber B-end setup, making it an indispensable device for data transmission.

One of the standout features of our portable fiber converters is their dynamic LED indicators. This intuitive feature provides real-time status updates, ensuring easy monitoring and troubleshooting. Whether you are a professional network administrator or a tech-savvy individual, our converter’s user-friendly interface is easy to navigate and operate.

To keep your network infrastructure safe, our converter ports support 4KV lightning protection. This feature protects your device from power surges, giving you peace of mind during thunderstorms or power fluctuations. With the protection provided by our converters, you can rest assured that your network components are protected from any potential damage.

Flexibility is a key aspect of our portable fiber optic converters. It’s designed to accommodate an external power source, allowing you to easily connect and use it. This attribute enables you to efficiently set up your network for seamless integration and hassle-free management.

With the convenience of portability, portable fiber optic converters are a must-have for professionals working in dynamic environments. Its compact, lightweight design makes it easy to transport and set up your network wherever you go. Whether you’re in the office, on a business trip, or setting up a temporary network infrastructure, this converter ensures unmatched connectivity without compromising performance.

At Huizhou Changfei Optoelectronics Technology Co., Ltd., we understand the importance of reliable network solutions to simplify your life and increase your productivity. That’s why we constantly strive to provide innovative products that meet your needs. Portable fiber optic converters are just one part of our commitment to excellence.

With our products, you get reliable, efficient connections every time. Whether establishing a secure network for your business, enabling smooth communication between remote offices, or ensuring uninterrupted Internet access for your home, portable fiber converters can transform your networking experience.

Choose Huizhou Changfei Optoelectronics Technology Co., Ltd. to meet your connection needs and embark on an unprecedented seamless network journey. Trust our expertise, rely on our innovations, and experience the best network experience with portable fiber converters. Enhance your connectivity – choose excellence.

 What This Product Does

◇ CF-101GSK-3B is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals.

 How This Product Works

◇ CF-101GSK-3B adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 3 km with only a single mode fiber, which saves half of the cable deployment cost for customers. CF-101GSK-3B transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the CF-101GSK-3B should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. CF FIBERLINK another media converter CF-101GSK-3A is one of the products that can cooperate with CF-101GSK-3B.

 Other Features

◇ Besides, this media converter can be used as a standalone device (no rack required) or used with CF FIBERLINK’s CF-2U16 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

technical parameter:



Model

CF-101GSK-3B
Interface Characteristics


Fixed Port



1* 10/ 100/ 1000Base-T RJ45 port

1* 1000Base-X uplink SC fiber port



Ethernet Port



10/ 100/ 1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption



Twisted Pair

Transmission



10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-T: Cat5e or later UTP(≤100 meter)

1000BASE-T : Cat5e or later UTP(≤100 meter)

   Optical Port    Default optical module is single-mode single-fiber 3km, SC port
Wavelength/Distance A-end:  RX1310nm / RX1550nm  0 ~ 40KM

B-end:RX1550nm/ RX1310nm  0 ~ 40KM

A-end:  RX1490nm / RX1550nm  0 ~ 120KM

B-end:RX1550nm/ RX1490nm  0 ~ 120KM

Chip Parameter
   Network Protocol   IEEE802.3 10BASE-T,    IEEE802.3i 10Base-T,

IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX, IEEE802.3x

IEEE802.3ab 1000Base-T;IEEE802.3z 1000Base-X;



Forwarding Mode



Store and Forward(Full Wire Speed)



Switching Capacity



4Gbps



Buffer Memory

  3Mpps


MAC

  2K


LED Indicator

Fiber FX(green)
 Data  TP (green)
Single / duplex FDX (green)
 Power PWR (green)
Power
  Working Voltage

AC:100-240V



Power Consumption



Standby<1W, Full load<5W



Power Supply



DC:5V/2A  industrial power supply

Lightning protection &Certification
Lightning protection Lightning protection: 4KV 8/20us, Protection level: IP30
Certification CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS
Physical Parameter
  Operation TEMP     -20~+55°C;5%~90% RH Non condensing
   Storage TEMP

   -40~+85°C;5%~95% RH Non condensing

   Dimension (L*W*H)    98mm*75mm*2mm
   Installation     Desktop, CF-2U16 slot rack

Product Size:



Product application diagra:

1 (2)

How to choose a fiber optic transceiver?

Optical fiber transceivers break the 100-meter limitation of Ethernet cables in data transmission. Relying on high-performance switching chips and large-capacity caches, while truly achieving non-blocking transmission and switching performance, they also provide balanced traffic, isolation and conflict. Error detection and other functions ensure high security and stability during data transmission. Therefore, fiber optic transceiver products will still be an indispensable part of actual network construction for a long time. So, how should we choose fiber optic transceivers?

1. Port function test
Mainly test whether each port can work normally in the duplex state of 10Mbps, 100Mbps and half-duplex state. At the same time, it should be tested whether each port can automatically select the highest transmission speed and automatically match the transmission rate of other devices. This test can be included in other tests.

2. Compatibility test
It mainly tests the connection ability between the optical fiber transceiver and other devices compatible with Ethernet and Fast Ethernet (including network card, HUB, Switch, optical network card, and optical switch). The requirement must be able to support the connection of compatible products.

3. Cable connection characteristics
Test the fiber optic transceiver’s ability to support network cables. First, test the connection ability of Category 5 network cables with lengths of 100m and 10m, and test the connection ability of long Category 5 network cables (120m) of different brands. During the test, the optical port of the transceiver is required to have a connection capability of 10Mbps and a rate of 100Mbps, and the highest must be able to connect to a full-duplex 100Mbps without transmission errors. Category 3 twisted pair cables may not be tested. Subtests can be included in other tests.

4. Transmission characteristics (transmission loss rate of data packets of different lengths, transmission speed)
It mainly tests the packet loss rate when the optical fiber transceiver optical port transmits different data packets, and the connection speed under different connection rates. For the packet loss rate, you can use the test software provided by the network card to test the packet loss rate when the packet size is 64, 512, 1518, 128 (optional) and 1000 (optional) bytes under different connection rates. , the number of packet errors, the number of packets sent and received must be more than 2,000,000. Test transmission speed can use perform3, ping and other software.

5. The compatibility of the whole machine to the transmission network protocol
It mainly tests the compatibility of fiber optic transceivers to network protocols, which can be tested in Novell, Windows and other environments. The following low-level network protocols such as TCP/IP, IPX, NETBIOS, DHCP, etc. must be tested, and the protocols that need to be broadcast must be tested. Optical transceivers are required to support these protocols (VLAN, QOS, COS, etc.).

6. Indicator status test
Test whether the status of the indicator light is consistent with the description of the panel and the user manual, and whether it is consistent with the current status of the fiber optic transceiver.
