Industrial grade 8-port Gigabit Ethernet switch

Short Description:

CF-YG1008D series Gigabit Ethernet switch series is an unmanaged Gigabit Industrial Ethernet switch independently developed by our company, with 8 10/100/1000Base-T RJ45 ports. Realize the convenient connection and expansion of the network. The solution of large backplane and large cache switching chip is preferred to improve the forwarding rate of large files, and can effectively solve the problems of video freezing and picture loss in the high-definition monitoring environment. It is suitable for hotels, banks, campuses, factory dormitories and small and medium-sized enterprises to form cost-effective networks. Non-network management model, plug and play, no configuration required, easy to use.


Product Detail

Product Tags

product description:

Support mutual conversion between 10/100Base-TX and 1000Base-TX;

8 10/100/1000 Base-T RJ45 ports;
10/100/10000Mbps rate self-adaptation, MDI/MDI-X self-adaptation, full/half-duplex self-adaptation;
Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control;
Optical and electrical links have full connection/activity status indicators;
All ports support non-blocking wire-speed forwarding for smoother transmission;
Broadcast filtering function, address automatic learning and automatic update function and operation mechanism of store and forward;
Adopt "YOFC" self-developed power supply and high redundancy design to provide long-term stable power output;
Plug and play, simple and convenient to use, without any settings;
With DIP switch, it provides four working modes, which can be switched intelligently and can be selected on demand;
Desktop, wall-mounted installation;
The low-power design of the host, the active fan to enhance heat dissipation, and the metal casing ensure the stable operation of the product;
The equipment meets the national CCC standard, fully meets the safety requirements, and is safe and reliable to use.

2 (1)
2 (5)
Protocol standard IEEE802.310Base-T IEEE802.3x Flowcontrol
IEEE802.3u100Base-TX/FX IEEE802.1qVLAN
IEEE802.3ab1000Base-T IEEE802.1pQoS
IEEE802.3z1000Base-SX/LX IEEE802.1d SpanningTree
Network port features Electrical connector: RJ45
Transmission rate: 10/100/1000Mbps adaptive
Cable Type: UTP-5E or higher
Transmission distance: ≤100 meters
Power Specifications External power adapter: DC 5V1A
The total power of the whole machine: 5W
Standby power consumption: <1.3W (power consumption of the whole machine)
Full load power consumption: <3W (the power consumption of the whole machine
LED indicator Power indicator: PWR (green);
Data indicator: Link/Act (green)
working environment Storage temperature: -40 ~ 70℃
Working temperature: -10 ~ 55℃
Working humidity: 10% ~ 90% RH without condensation
Storage humidity: 5% ~ 90% RH without condensation
Safety certification 3C certification;
CE mark, commercial; CE/LVD EN60950
FCC Part 15 Class B; RoHS

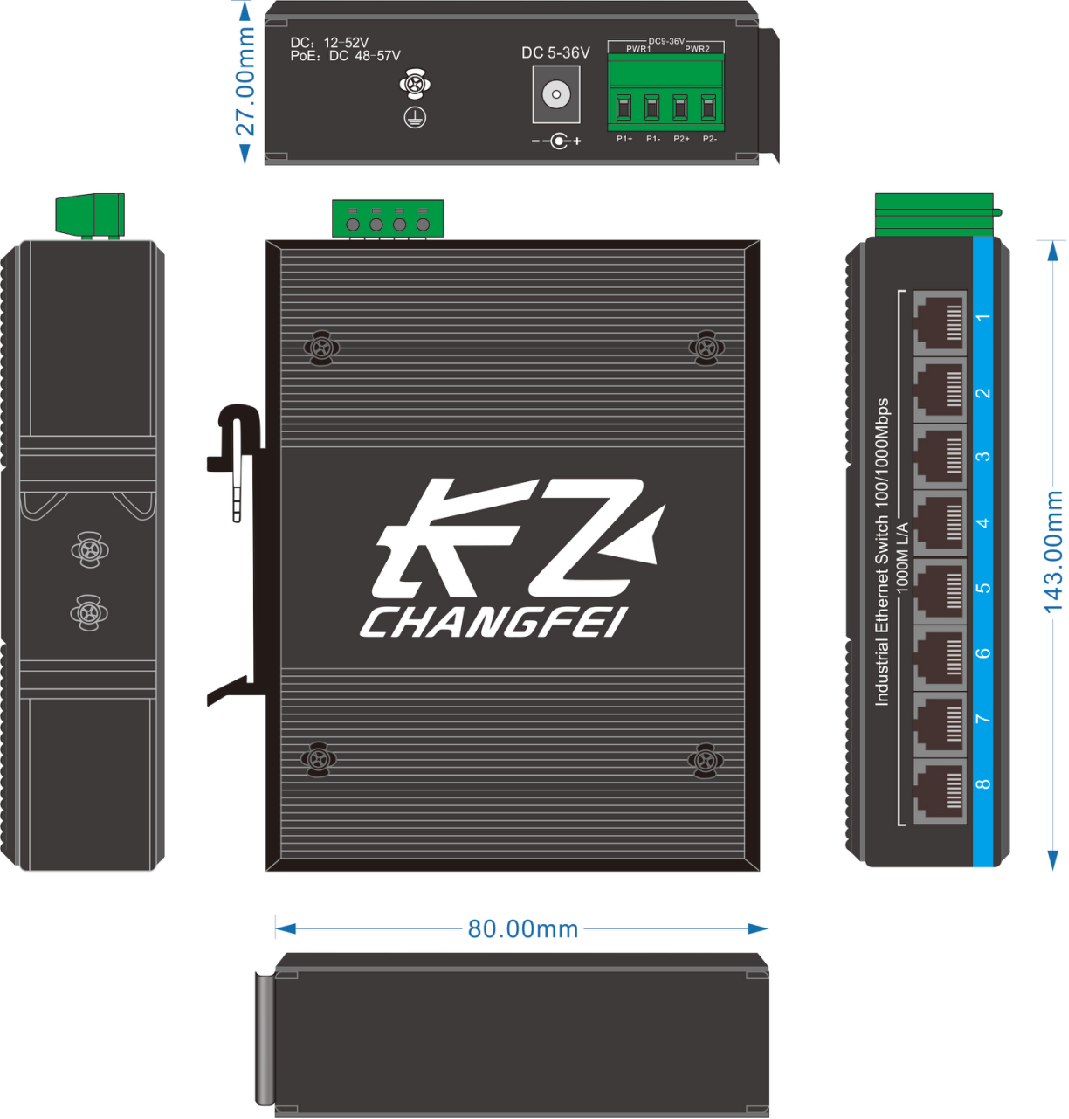

Mechanical structure Dimensions: 143×80×27mm
Net weight: 0.15g
Gross weight: 0.25kg
Body color: aluminum alloy, black, IP40 protection grade
Installation method: rail or desktop installation
warranty period Switch 3 years, lifetime maintenance
