Gigabit Fiber Transceivers

Short Description:

1 1.25Gbps optical port, 2 10/100/1000Mbps auto-adaptive electrical ports
Support MDI/MDI-X self-adaptation, full/half duplex self-adaptation
Single-mode single-fiber SC interface mode, the optical fiber transmission distance can reach 20KM
Dynamic LED indicator, real-time display of the current working status of the device
Simple to use, plug and play, no setup required
Working temperature support -20℃~70℃
Exquisite iron shell design, support rack-mounted installation


Product Detail

Product Tags

product description:

This product is a gigabit fiber optic transceiver with 1 gigabit optical port and 2 1000Base-T(X) adaptive Ethernet RJ45 ports. It can help users realize the functions of Ethernet data exchange, aggregation and long-distance optical transmission. The device adopts fanless and low power consumption design, which has the advantages of convenient use, small size and simple maintenance. The product design conforms to the Ethernet standard, and the performance is stable and reliable. The equipment can be widely used in various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, electric power, water conservancy and oil fields..

1 (2)
1 (3)
1 (2)
model CF-1012GSW-20A/B
network port 2×10/100/1000Base-T Ethernet ports
Fiber port 1×1000Base-FX SC interface
Power interface DC
led PWR, FDX, FX, TP, SD/SPD1, SPD2
rate 100M
light wavelength TX1310/RX1550nm
web standard IEEE802.3, IEEE802.3u, IEEE802.3z
Transmission distance 20KM
transfer mode full duplex/half duplex
IP rating IP30
Backplane bandwidth 6Gbps
packet forwarding rate 4.47Mpps
Input voltage DC 5V
Power consumption Full load<5W
Operating temperature -20℃ ~ +70℃
storage temperature -15℃ ~ +35℃
Working humidity 5%-95% (no condensation)
Cooling method fanless

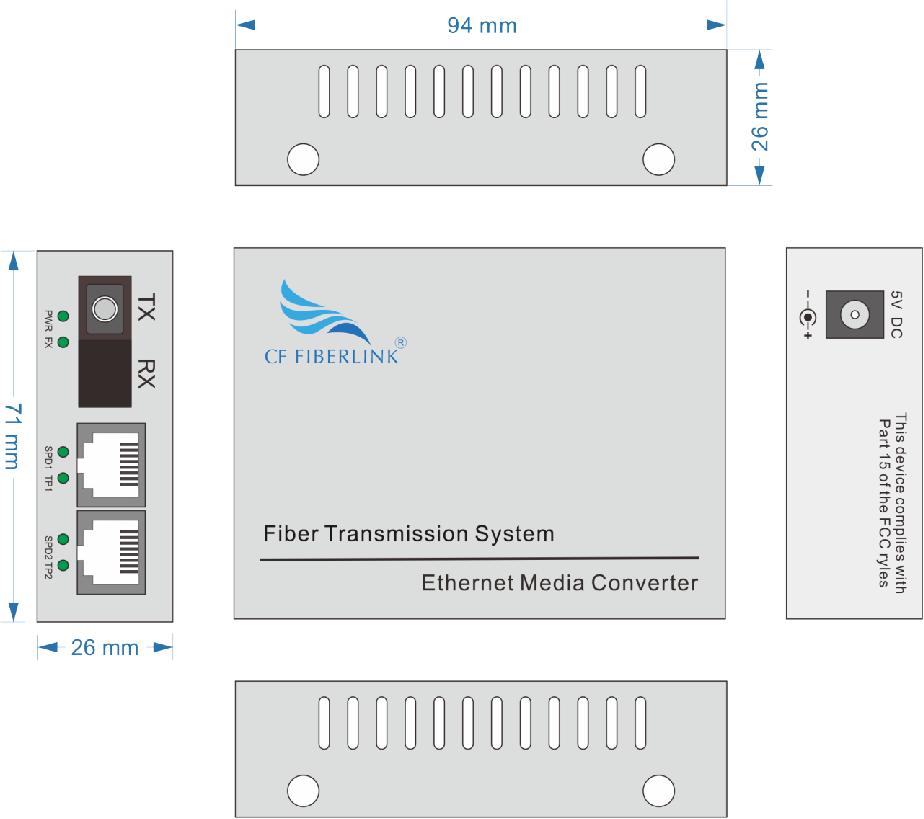

Dimensions (LxDxH) 94mm×71mm×26mm
weight 200g
Installation method Desktop/Wall Mount
Certification CE, FCC, ROHS
LED indicator condition meaning
SD/SPD1 Bright The current electrical port rate is gigabit
SPD2 Bright The current electrical port rate is 100M
extinguish The current electrical port rate is 10M
FX Bright Optical port connection is normal
flicker Optical port has data transmission
TP Bright The electrical connection is normal
flicker The electrical port has data transmission
FDX Bright The current port is working in full duplex state
extinguish The current port is working in half-duplex state
PWR Bright Power is OK



What do I need to pay attention to when choosing a compatible fiber optic transceiver?

What to pay attention to when purchasing a compatible fiber optic transceiver:

Compatibility - The transceiver is not compatible with your original brand switch. Lifetime - Transceivers are of unreliable quality and have a short lifespan. Poor performance - high latency, etc. Other - Refurbished modules, power consumption, etc.

How to ensure the quality of compatible fiber optic transceivers?

1. Professional testing process

Make sure that the compatible fiber optic transceivers you purchase have been tested on the relevant original brand switches. For example, when you purchase a compatible fiber optic transceiver, make sure it is tested on the switch. In general, tested and compatible fiber optic transceivers always guarantee flawless performance in your network.

2. Guarantee Warranty Policy

Shopping experience tells us that inferior products usually have short-term warranties. If there is a problem with your product, the supplier will not provide you with any repairs and returns. Conversely, if the warranty period is long, such as a lifetime warranty, the quality of the product may be more reliable and stable.

3. Reputable brand suppliers

With strict quality control system and years of OEM experience, reputable brand suppliers can usually provide reliable and stable connections for your high-speed optical fiber transmission system. All the raw materials they use are safe and the performance is comparable to the original.

Reliable and compatible optical transceiver structure details

In addition to the considerations mentioned above, it may also be of great help to you to understand the structural details of a well-compliant fiber optic transceiver.

1. High quality metal shell

Good fiber optic transceivers use high-quality pluggable hard gold plating to ensure repeated plugging and unplugging. In addition, through tight control of gold plating thickness, excellent quality can be achieved, good connections are ensured, and operating temperatures are reduced.

2. High quality laser

The high-quality laser has the characteristics of high sensitivity, low attenuation and high quality, which ensures perfect signal transmission and reception.

3. Advanced Chips

Advanced chips provide module solutions with high performance and low power consumption, ensuring high-speed signal transmission and stable performance.

4. The perfect combination

The combination of gold finger (conductive metal), chip, and metal housing form the perfect fiber optic transceiver
